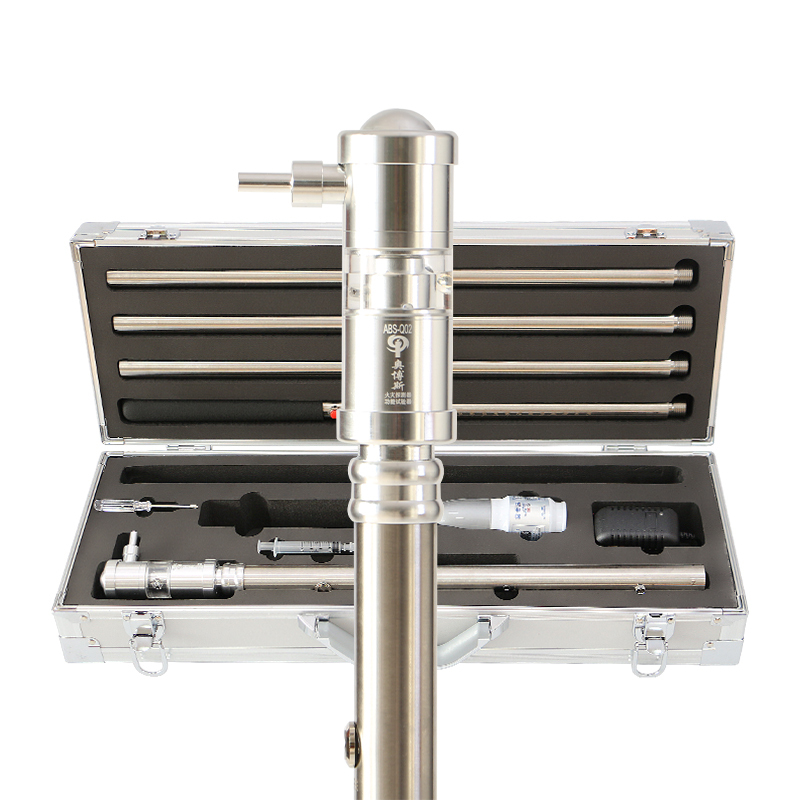

Integrated four-in-one detector tester

Integrated four-in-one detector tester

share

Integrated four-in-one detector tester

  • Detail
  • Parameters







Model No.
ABS-Q02
Type of test
Smoke or Heat or Flame or Gas Detector
Operation Method
Manual button
Smoke Test
450-800Detectors（With Battery Full Charged）
Heat Test
＞400 Detectors（With Battery Full Charged）
Flame Test
＞400 Detectors（With Battery Full Charged）
Gas Test
＞400 Detectors（With Battery Full Charged）
Matching Connecting Rod
ABS-810
Parameter
Infrared spectral range: 【Install the filter】4.2-4.6μm，Single band，Dual band，Three-band；【No filter installed】Broad Spectrum Single Band；UV spectral range:185nm-255nm；
Standard length
2.5m
Adding Extra Poles
Yes
Maximum connection height
8m
Tester Materials
Stainless Steel
Connecting rod Materials
Stainless steel
Packing box Materials
Aluminum
Battery Parameters
DC 7.4V 2200mAh
Charger Output
DC 8.4V 1000mAh
Whole Set Weight
4.2KG
